Introduction

Kmemdump is a mechanism to obtain a small footprint debug dump from a crashed kernel.

In a previous blog post we talked about how kmemdump came about with a few details on

how to run it. This time we are going to deep dive into a simple yet efficient way to run

kmemdump on a specific platform that supports it. By using kmemdump we will end up with

a small but usable crash core dump that we can inspect.

SA8775P Ride platform

Informally known as LeMans, the SA8875P Ride platform is the next-generation

Qualcomm Snapdragon Advanced Driver Assistance System (ADAS) and

automotive infotainment SoC designed for superior performance and power

efficiency in automotive applications.

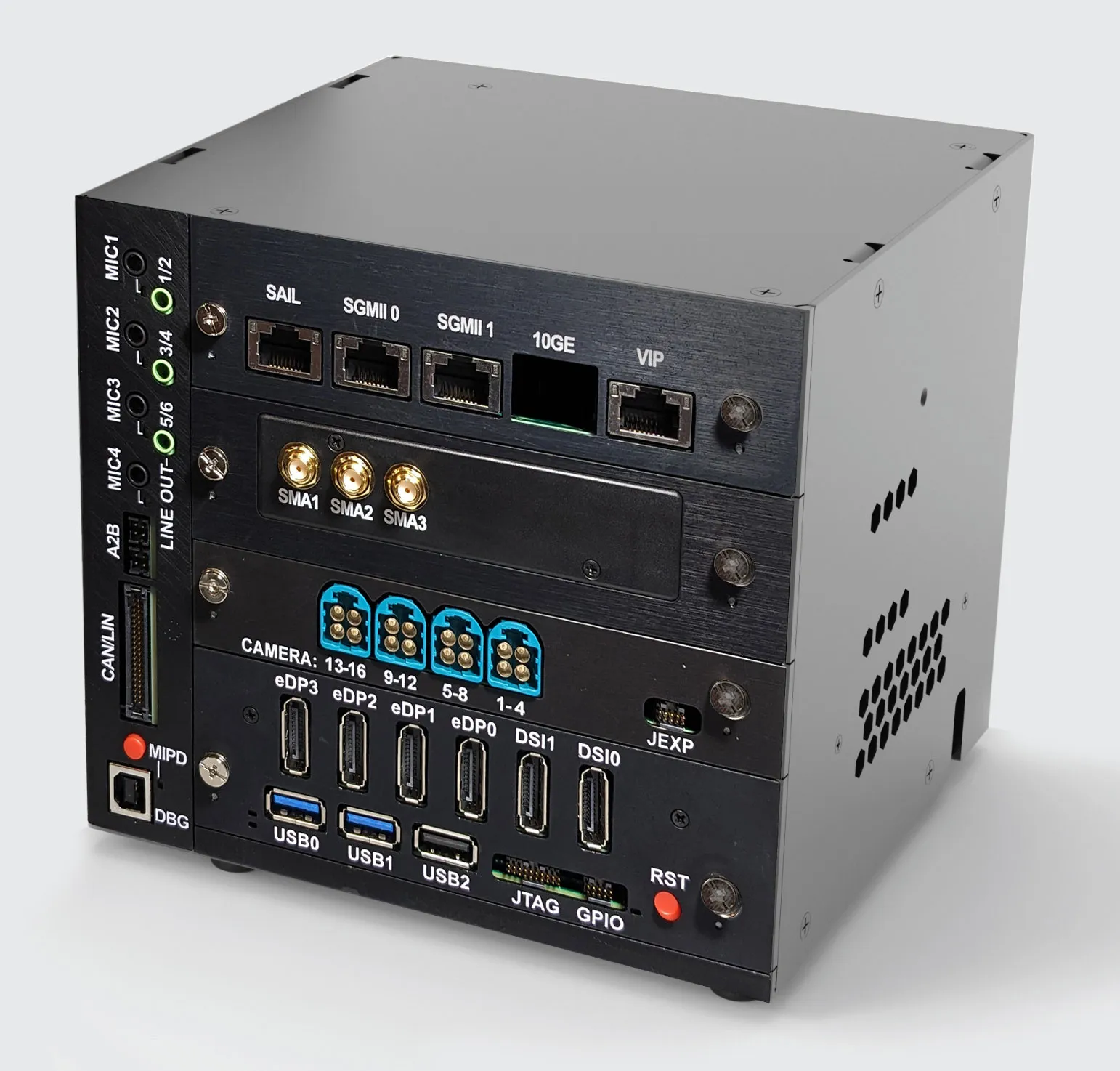

SA8775P Ride platform image

Preparing the environment

First things first, build the Linux Kernel, create a root file system, and boot your board. Now

we can get kmemdump up and running!

The LeMans is already supported in the upstream kernel, so you only have to apply the

kmemdump RFC patch series on top of your kernel from here.

Kernel config

Prepare the kernel using the following kernel configuration options:

CONFIG_DEBUG_INFO_REDUCED=n
CONFIG_KMEMDUMP=y
CONFIG_KMEMDUMP_COREIMAGE=y
CONFIG_KMEMDUMP_QCOM_MINIDUMP_BACKEND=m

This will enable the kmemdump feature, its minidump backend driver, and more debugging

information in the kernel that will be used later.

Kernel boot arguments

The Qualcomm SCM driver needs to instruct the firmware to use the ‘mini’ mode for

dumping, instead of the ‘full’ mode. Full mode means the whole memory is dumped, while

mini mode in turn will have the firmware to walk the minidump table, only dumping specific

memory areas that were registered by kmemdump.

To achieve this, add qcom scm.download mode=mini to the kernel boot command.

Crash tool

Crash is a tool that can load the obtained debug dump and load it for inspection and analysis. Crash source code can be downloaded from github.

To use the full functionality of Crash, you need to apply a small patch that will make full mode operational. Crash can still load the debug image using `minimal` mode. If you want to use only minimal mode, you can skip this step.

The patch to apply can be downloaded from here. To build and use Crash on an x86 machine, it has to be built with `target=ARM64` as LeMans is an ARM64 platform.

Emergency download mode (EDL) tool

You will need the EDL tool to run on the host, to be able to interface the Qualcomm firmware and download the debug files. The tool needs to be compiled and installed.

Booting and getting ready

Once the kernel boots, you need to load the backend driver, which is built as a module:

$ modprobe qcom_minidump

After this step, the environment is ready for any possible event.

Acting on the panic

You can generate an artificial panic to test kmemdump now.

$ echo c > /proc/sysrq-trigger

Once the panic happens, wait for the Qualcomm upper level firmware to kick in and take control of the system.

When this happens, you will see some information on the console, ending with something similar to:

B -   1096414 - usb: init start
B -   1100287 - usb: qusb_dci_platform , 0x19
B -   1105686 - usb: usb3phy: PRIM success: lane_A , 0x60
B -   1107455 - usb: usb2phy: PRIM success , 0x4
B -   1112670 - usb: dci, chgr_type_det_err
B -   1117154 - usb: ID:0x260, value: 0x4
B -   1121942 - usb: ID:0x108, value: 0x1d90
B -   1124992 - usb: timer_start , 0x4c4b40
B -   1129140 - usb: vbus_det_pm_unavail
B -   1133136 - usb: ID:0x252, value: 0x4
B -   1148874 - usb: SUPER , 0x900e
B -   1275510 - usb: SUPER , 0x900e
B -   1388970 - usb: ID:0x20d, value: 0x0
B -   1411113 - usb: ENUM success
B -   1411113 - Sahara Init
B -   1414285 - Sahara Open

The firmware will prepare the dump files and open up an USB gadget, such that you can connect from the host with a cable, and use EDL tool:

$ edl

EDL will connect and download all the files and place them into the `memory/` subdir which will have been created.

Assembling the debug image

This can be done in many ways, but one simple way is just using `cat` to put them all together:

cat memory/md_KELF1.BIN memory/md_Kvmcorein2.BIN memory/md_Kconfig3.BIN \
memory/md_Kmemsect4.BIN memory/md_Ktotalram5.BIN memory/md_Kcpu_poss6.BIN \
memory/md_Kcpu_pres7.BIN memory/md_Kcpu_onli8.BIN memory/md_Kcpu_acti9.BIN \
memory/md_Kjiffies10.BIN memory/md_Klinux_ba11.BIN memory/md_Knr_threa12.BIN \
memory/md_Knr_irqs13.BIN memory/md_Ktainted_14.BIN memory/md_Ktaint_fl15.BIN \
memory/md_Kmem_sect16.BIN memory/md_Knode_dat17.BIN memory/md_Knode_sta18.BIN \
memory/md_K__per_cp19.BIN memory/md_Knr_swapf20.BIN memory/md_Kinit_uts21.BIN \
memory/md_Kprintk_r22.BIN memory/md_Kprintk_r23.BIN memory/md_Kprb24.BIN \
memory/md_Kprb_desc25.BIN memory/md_Kprb_info26.BIN memory/md_Kprb_data27.BIN \
memory/md_Krunqueue28.BIN memory/md_Khigh_mem29.BIN memory/md_Kinit_mm30.BIN \
memory/md_Kinit_mm_31.BIN memory/md_Kunknown32.BIN memory/md_Kunknown33.BIN \
memory/md_Kunknown34.BIN  memory/md_Kunknown35.BIN memory/md_Kunknown36.BIN \
memory/md_Kunknown37.BIN memory/md_Kunknown38.BIN memory/md_Kunknown39.BIN \
memory/md_Kunknown40.BIN memory/md_Kunknown41.BIN memory/md_Kunknown42.BIN \
memory/md_Kunknown43.BIN memory/md_Kunknown44.BIN memory/md_Kunknown45.BIN \
memory/md_Kunknown46.BIN memory/md_Kunknown49.BIN  memory/md_Kunknown50.BIN \
memory/md_Kunknown51.BIN > ~/minidump_image

Loading the image into Crash

$ ./crash --no_modules --no_panic --no_kmem_cache --zero_excluded vmlinux minidump_image

Where vmlinux is created when building the kernel, and minidump_image is the dump created at the previous step.

If the patch on the Crash tool was not applied, you can only use the `—minimal` mode instead of all the arguments above. Minimal mode will only allow a small subset of Crash functionality.

Once crash finishes loading, it will print something similar to:

KERNEL: /home/eugen/linux-minidump/vmlinux  [TAINTED]
    DUMPFILE: /home/eugen/new
        CPUS: 8 [OFFLINE: 5]
        DATE: Thu Jan  1 02:00:00 EET 1970
      UPTIME: 00:00:22
       TASKS: 0
    NODENAME: qemuarm64
     RELEASE: 6.17.0-rc5-next-20250910-00020-g7dfa02aeae7e
     VERSION: #116 SMP PREEMPT Thu Sep 11 18:28:06 EEST 2025
     MACHINE: aarch64  (unknown Mhz)
      MEMORY: 34.2 GB
       PANIC: ""

The prompt for Crash will show up, taking up all GDB commands and specific Crash commands, like the `log` which will output the dmesg kernel log:

crash> log
[    0.000000] Booting Linux on physical CPU 0x0000000000 [0x410fd4b2]
[    0.000000] Linux version 6.17.0-rc5-next-20250910-00020-g7dfa02aeae7e (eugen@eugen-
station) (aarch64-none-linux-gnu-gcc (Arm GNU Toolchain 13.3.Rel1 (Build arm-13.24)) 13.3.1
20240614, GNU ld (Arm GNU Toolchain 13.3.Rel1 (Build arm-13.24)) 2.42.0.20240614) #116 SMP
PREEMPT Thu Sep 11 18:28:06 EEST 2025

You can then use Crash to debug anything related to the kernel, bearing in mind that not all the kernel memory is available, rather just the memory registered through kmemdump.

More examples

In these examples we can see how to use Crash to inspect structures and variables in the dump.

crash> p linux_banner
linux_banner = $1 = 0xffffdbc68ea56340 <linux_banner> "Linux version 6.16.0-rc7-
next-20250721-00043-g0e33acc05bc3-dirty (eugen@eugen-station) (aarch64-none-linux-gnu-gcc
(Arm GNU Toolchain 13.3.Rel1 (Build arm-13.24)) 13.3.1 20240614, GNU ld (Arm GNU Toolchain
13.3.Rel1 (Build arm-13.24)) 2.42.0.20240614) #87 "...

crash> p node_states
node_states = $2 =
 {{
    bits = {1}
  }, {
    bits = {1}
  }, {
    bits = {1}
  }, {
    bits = {1}
  }, {
    bits = {1}
  }, {
    bits = {0}
  }}

crash> p mem_section[0][0]
$6 = {
  section_mem_map = 0,
  usage = 0x0
}

crash> p nr_irqs
nr_irqs = $7 = 378

Conclusion

Kmemdump can be used on the SA8775P LeMans platform to obtain a small footprint for quick kernel debugging. The readily available open source tools can be used to facilitate the process, which is simple yet efficient.

To learn more or contribute, you can join the discussion on the mailing list.
